H-type broiler cage equipment -single cage
● Made of Z275 galvanized steel sheet, offering strong corrosion resistance and extended service life; its rational structural design ensures long-term strength.
● A rearing height of 450mm and a layer height of 600mm improve ventilation and enhances breeding performance.
● Feeding is done on one side, while chickens are handled on the other, making it easier to remove chickens and increasing efficiency.
● The upright frame features horizontal hanging wire mesh beams and support beams, ensuring greater stability.
● Heating pipes run through the horizontal hanging wire mesh beams, promoting healthier chicken growth.
● The cage body uses stainless steel bolts, making it more corrosion-resistant and less prone to rust.
Parameters
| Number of cage layers | Unit | 3 floors | 4 floors |
| Cage length | (mm) | 1250 | 1250 |
| Cage depth | (mm) | 1000 | 1000 |
| Cage height | (mm) | 450 | 450 |
| Floor height | (mm) | 600 | 600 |
| Cage height | (mm) | 2100 | 2700 |
| Number of chickens per cage | (只) | 25 | 25 |
| Number of chickens per group | (只) | 75 | 100 |
Note: Stocking density is 50 kg/m2 (calculated based on 2.5 kg/animal).
Product Details
Premium Z275 Galvanized Steel Construction
The entire cage structure is manufactured from high-quality Z275 hot-dip galvanized steel sheets, providing exceptional corrosion resistance and long-term durability. Compared with ordinary galvanized materials, Z275 steel offers superior protection against rust and harsh poultry house environments, significantly extending the equipment's service life.
Benefits:
? Excellent anti-corrosion performance
? Long service life exceeding 15–20 years
? Reduced maintenance costs
? Suitable for high-humidity poultry houses
Optimized Cage Height for Superior Ventilation
The system features a 450mm rearing height and 600mm layer spacing, creating a more open environment that improves air circulation throughout the cage system. Enhanced ventilation helps reduce heat stress, lower ammonia concentration, and maintain healthier growing conditions for broiler chickens.
Benefits:
? Improved airflow and oxygen supply
? Reduced heat stress during hot seasons
? Lower ammonia accumulation
? Better flock health and performance
? Enhanced weight gain and feed efficiency
Separate Feeding and Bird Handling Design
The innovative cage layout allows feeding operations to be conducted from one side while bird management and harvesting are performed from the opposite side. This design improves workflow efficiency and simplifies daily farm operations.
Benefits:
? Easier bird inspection and management
? Faster broiler harvesting
? Reduced labor intensity
? Improved operational efficiency
? Lower bird stress during handling
Reinforced Structural Stability
The vertical support frame incorporates horizontal suspended wire mesh beams and reinforced support beams, creating a highly stable cage structure capable of supporting large-scale poultry production operations.
Benefits:
? Stronger load-bearing capacity
? Enhanced structural stability
? Improved operational safety
? Reduced maintenance requirements
? Reliable long-term performance

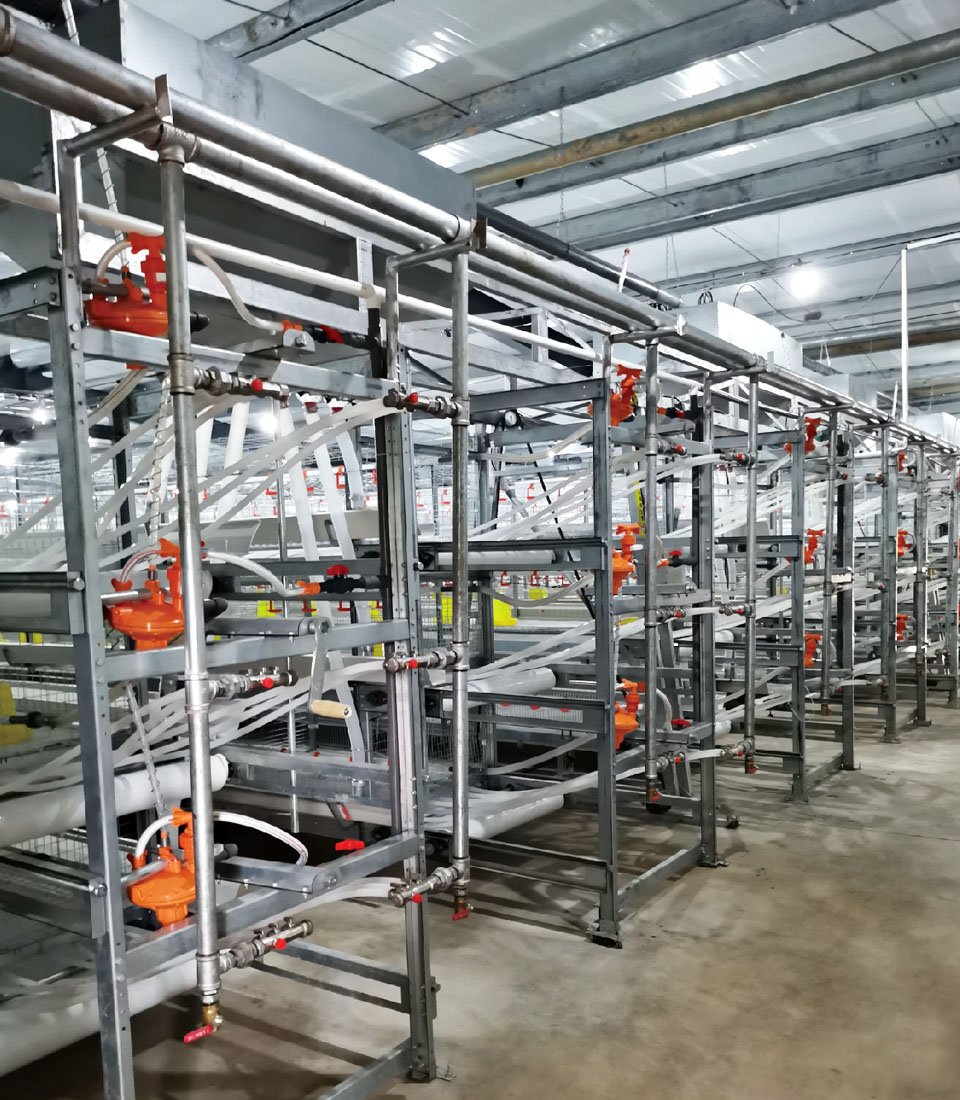

Integrated Heating Pipe Design
Heating pipes are strategically installed through the horizontal wire mesh support beams, providing consistent heat distribution throughout the cage system. This design creates a more comfortable environment for chicks and growing broilers, especially during colder seasons.
Benefits:
? Improved chick brooding performance
? Better temperature uniformity
? Reduced cold stress
? Higher survival rates
? Faster and healthier growth
Stainless Steel Fastening System
All cage components are assembled using premium stainless steel bolts and fasteners, providing superior corrosion resistance and ensuring structural integrity throughout the equipment's lifespan.
Benefits:
? Excellent rust resistance
? Increased structural durability
? Reduced maintenance frequency
? Longer equipment lifespan
? Better performance in humid environments
FAQ
1.What are the advantages of H type broiler cage equipment?
H type broiler cage equipment can improve space utilization, reduce labor costs, increase production efficiency and provide a cleaner farming environment.
2.How many chickens can be raised in cage systems?
The capacity depends on the poultry house size and cage configuration. Our systems can support small farms as well as large commercial farms with tens of thousands of layers.
3.Is automatic egg collection available?
Yes. Our layer cage systems can be equipped with automatic egg collection systems to improve efficiency and reduce egg breakage.
4.What poultry equipment do you manufacture?
We manufacture a full range of poultry farming equipment, including layer cage systems, broiler cage systems, breeder farming equipment, feeding systems, drinking systems, ventilation systems, cooling pad systems, manure removal systems and environmental control systems.
5.Do you provide turnkey poultry farm solutions?
Yes. We provide complete turnkey poultry farm solutions, including poultry house design, equipment manufacturing, installation guidance and technical support.
6.Which countries do you export to?
Our poultry equipment has been exported to Africa, Southeast Asia, the Middle East and South America, including Nigeria, Kenya, Uganda, Indonesia, Philippines and many other countries.
7.Can you customize poultry equipment?
Yes. We provide customized poultry farming equipment solutions according to farm size, climate conditions and customer requirements.
